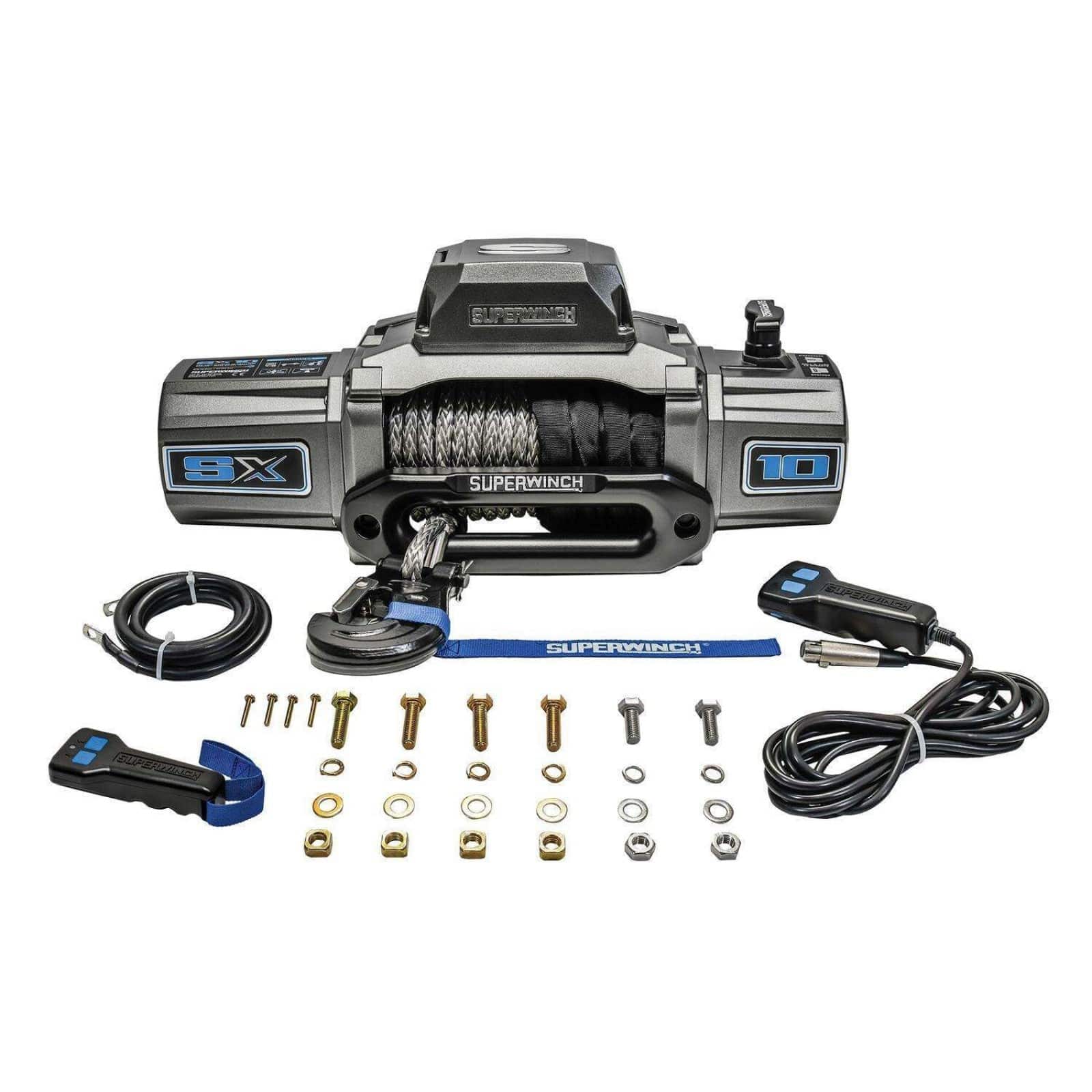

Superwinch SX10SR 12V Synthetic Rope Winch
Superwinch

SX10SR 12V Synthetic Rope Winch

$763.99 In Stock Sold out

3-5 DAYS DELIVERY

100% ORIGINAL AND QUALITY

  • Description
  • Shipping and Refund
  • Reviews

Product Details

The SX10SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.

  • 12V DC 10,000 lbs rated line pull
  • 5.5 HP sealed motor
  • Relocatable die-cast aluminum control box
  • Wireless handheld remote and 12 ft handheld wired remote with rechargeable flashight

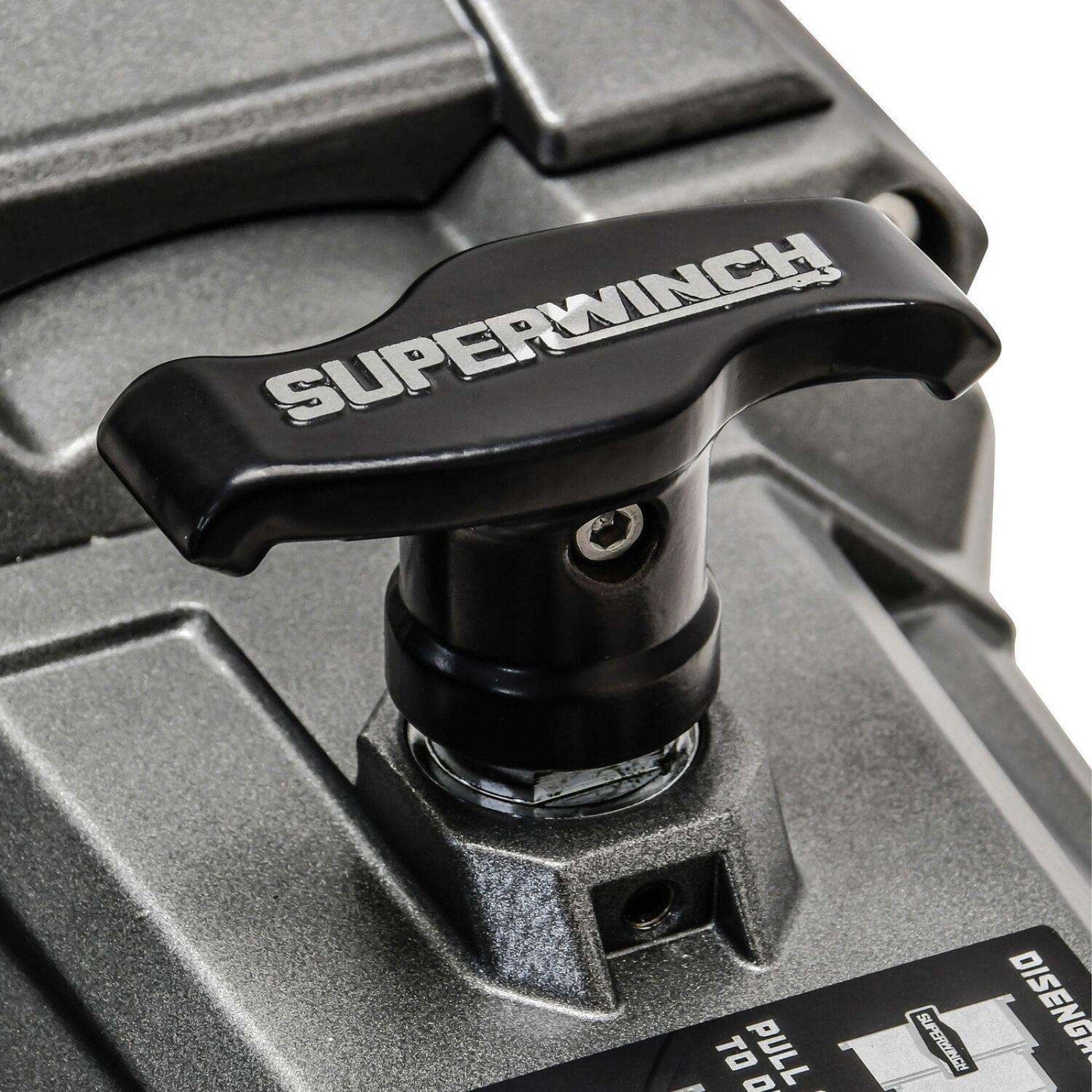

  • Pull-and turn clutch handle
  • 3-stage planetary gearing with 218:1 ratio

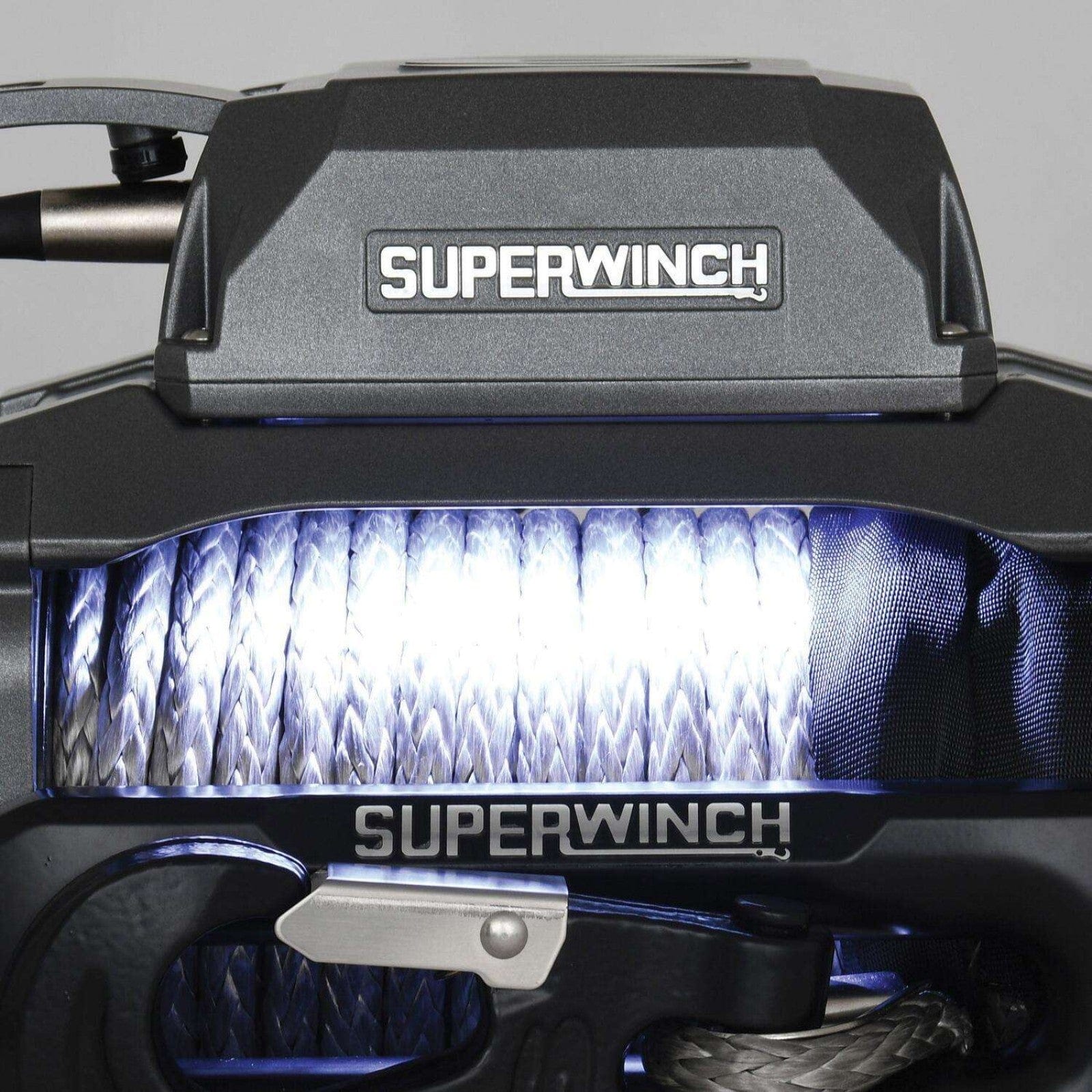

  • Patented drumlight
  • 3/8 in x 80 ft synthetic rope
  • Heavy duty clevis winch hook
  • Aluminum hawse fairlead
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof winch

Specifications

Brake
Automatic, 100% Load Holding Mechanical
Clutch
Pull and Turn, Ergonomic Free Spooling
Dimensions
22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Drum Diameter
2.5in (64mm)
Drum Length
8.75in (223mm)
Fairlead
Aluminum Machined Hawse
Gear Ratio
218:1
Gearing
3-Stage Planetary
Hook
Heavy-Duty, Clevis Pinned Latched
Motor
Sealed 5.5 HP Series Wound
Mounting Bolt Pattern
10in x 4.5in (254mm x 114.3mm)
Rated Line Pull
10,000 lbs (4535.9 kg)
Remote
Wireless Handheld and Sealed wired handheld with 12ft cord
Rope
Synthetic 3/8in x 80ft (9.5mm x 24.4m)
Solenoid
Sealed Solenoid, relocatable
Warranty
Limited Lifetime Mechanical, 7 Year Limited Electrical
