Superwinch Vehicle Parts & Accessories SX12 12V Wire Rope Winch
Superwinch

SX12 12V Wire Rope Winch

$673.99 In Stock Sold out

3-5 DAYS DELIVERY

100% ORIGINAL AND QUALITY

  • Description
  • Shipping and Refund
  • Reviews

Product Details

The SX12 winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter wire rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12000 wire rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable metallic graphite powder-coated finish, this winch has it all.

  • 12V DC 12,000 lbs rated line pull
  • 6.0 HP sealed motor
  • Relocatable die-cast aluminum control box

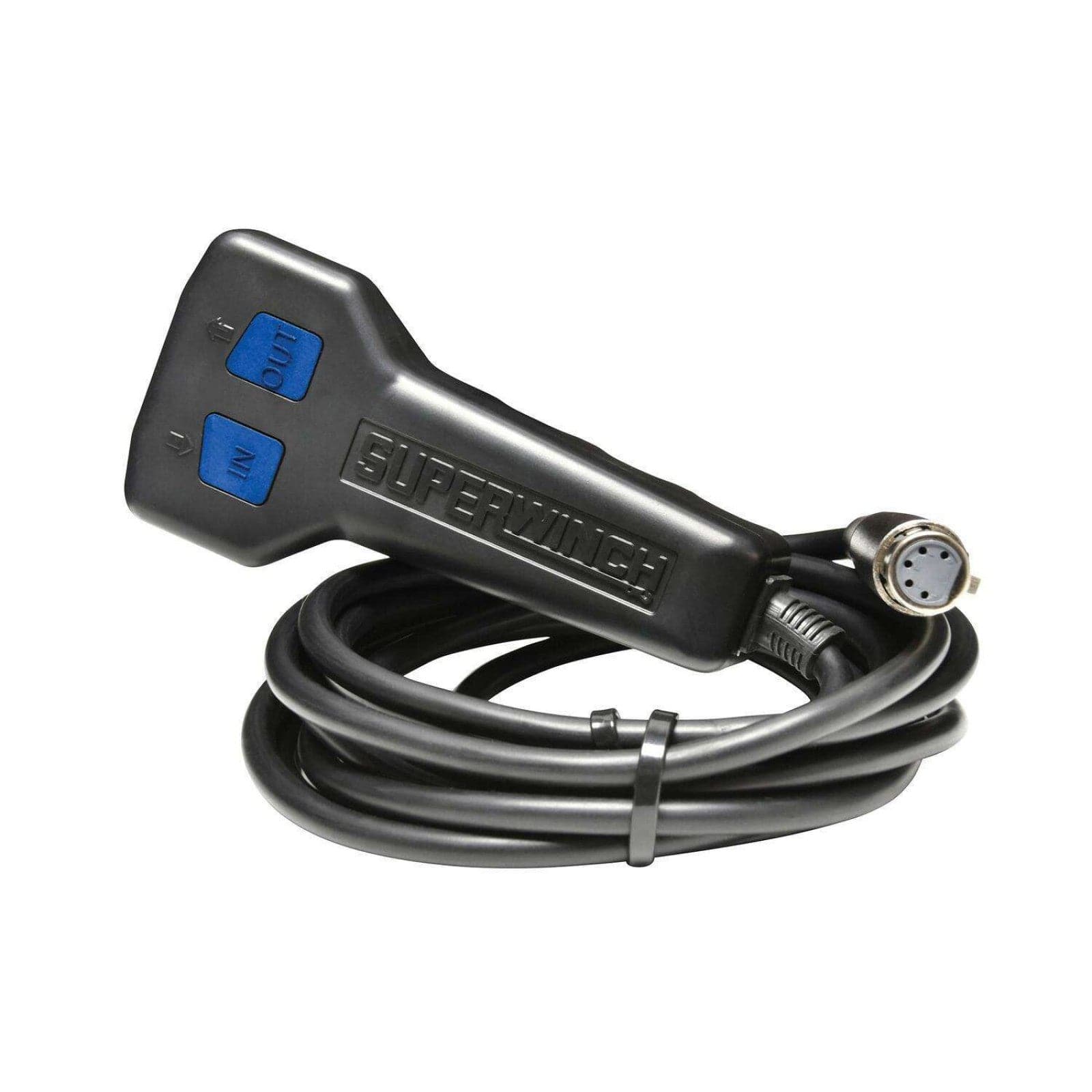

  • 12' handheld wired remote features flashight with rechargeable lithium ION battery
  • Pull-and turn clutch handle
  • 3-stage planetary gearing with 231:1 ratio
  • Patented drumlight
  • Wire rope measures 3/8” x 85'
  • Drum diameter measures 2.5"

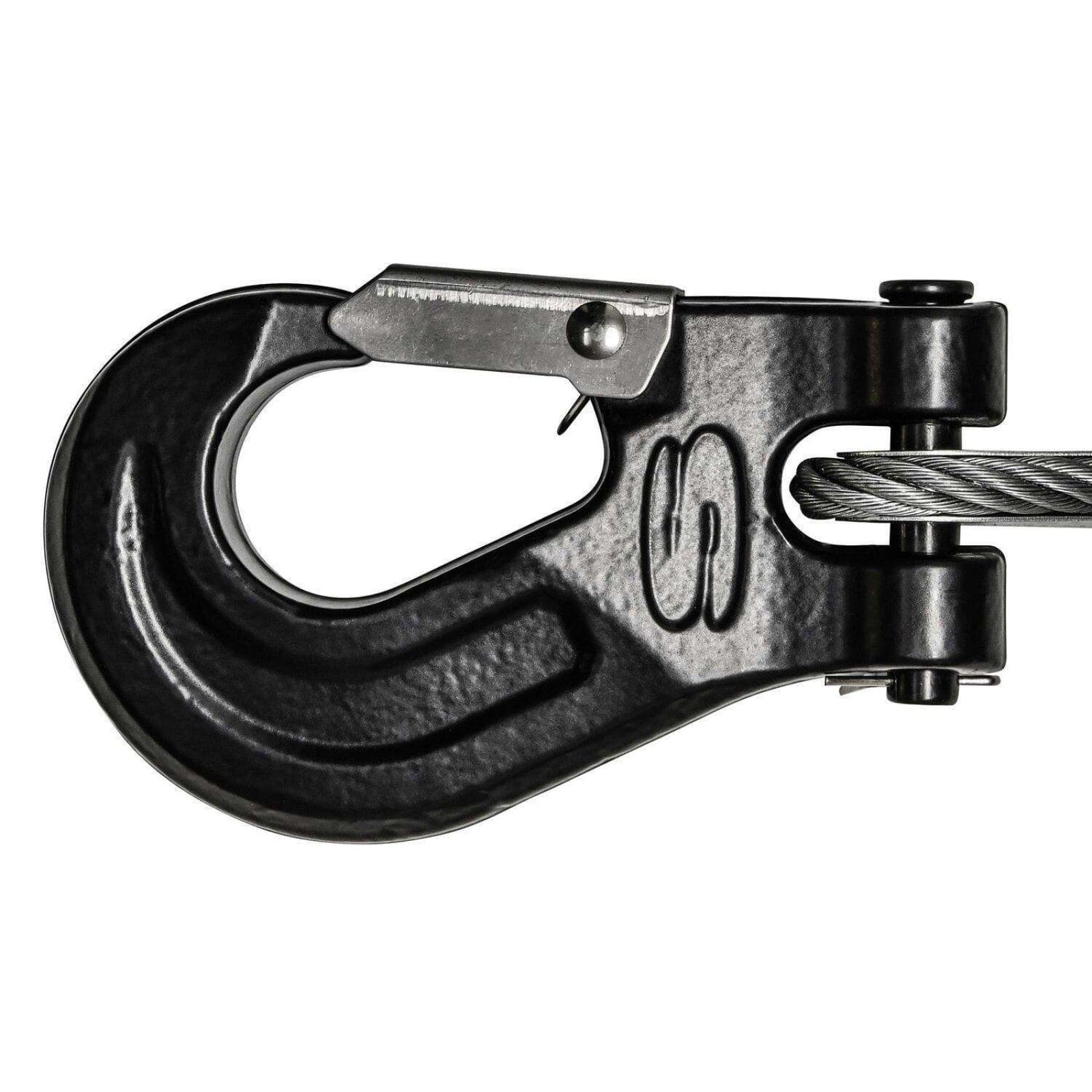

  • Heavy duty clevis winch hook
  • Stainless steel 4-way roller fairlead
  • 100% full load holding automatic mechanical brake

Specifications

Brake
Automatic, 100% Load Holding Mechanical
Clutch
Pull and Turn, Ergonomic Free Spooling
Dimensions
22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Drum Diameter
2.5in (64mm)
Drum Length
8.75in (223mm)
Fairlead
Heavy Duty Stainless Steel 4-way Roller
Gear Ratio
231:1
Gearing
3-Stage Planetary
Hook
Heavy-Duty, Clevis Pinned Latched
Line Pull, 0 lbs
68 Amps Motor Draw/23.4 FPM (7.13 MPM) Line Speed
Line Pull, 10,000 lbs
379 Amps Motor Draw/3.7 FPM (1.13 MPM) Line Speed
Motor
Sealed 6.0 HP Series Wound
Mounting Bolt Pattern
10in x 4.5in (254mm x 114.3mm)
Rated Line Pull
12,000 lbs (5443.1 kg)
Remote
Sealed Ergonomic Hand-held with 12ft Coiled Cord
Rope
Steel Wire 3/8in x 85ft (9.5mm x 25.9m)
Solenoid
Sealed Solenoid, relocatable
Warranty
Limited Lifetime Mechanical, 7 Year Limited Electrical
